HHGV- Hydrant Gates Valves

Gate valve, 2.5” NH female swivel x 2.5” NH male gate valve with a non-rising stem is excellent for hydrant, hose, high rise standpipe, and other water control applications. There is a spinning knob on hand wheel for easy open/close, with a built in slow close safety operation. Lightweight, corrosion resistance, anodized aluminum construction with an anodized aluminum spindle. Also available with special threads. This product features a high 250 PSI pressure rating.

250 PSI working pressure rating
Dimensions: L: 6” W: 5” H: 9”
Weight: 4.5 lbs.

PRINT a Technical Sheet
PRINT a Brochure

Description



Part Number Description Spec Sheet LIST
HHGV-25NHM-25NH Gate valve 2.5” NH female swivel rocker lug inlet x 2.5” NH male outlet (hydrant gate valve) DOWNLOAD $591.00
HHGV-HD-25NHM-25NH Gate valve 2.5” Heavy Duty NH female swivel rocker lug inlet x 2.5” NH male outlet (hydrant gate valve) Click HERE
for more information
$756.00

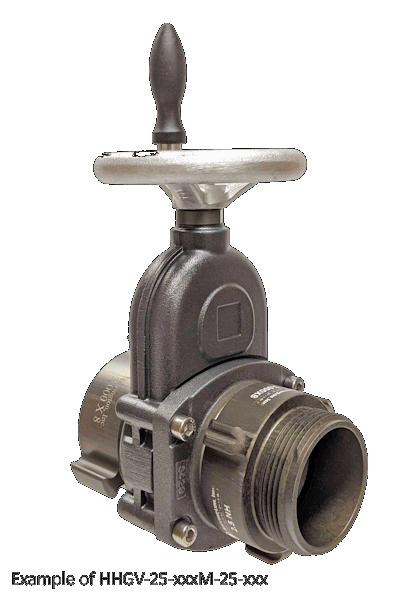

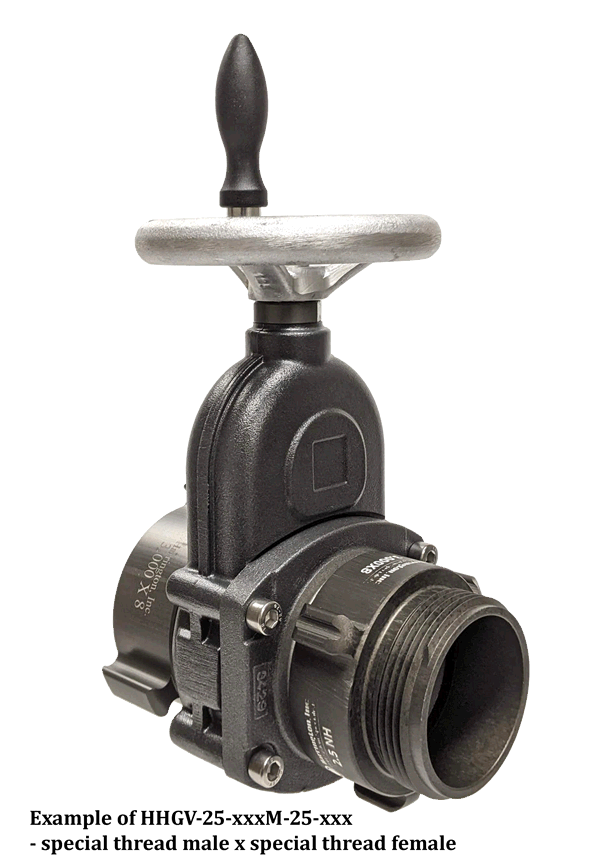

HHGV-25-xxxM-25-xxx Gate valve 2.5” special thread female swivel inlet x 2.5” special thread male outlet (hydrant gate valve) IMAGE DOWNLOAD $725.00
HHGV-25NHM-25NPSH Gate valve 2.5” NPSH female swivel rocker lug inlet x 2.5” NH male outlet (hydrant gate valve) $591.00
HHGV-25NHM-25NPTF Gate valve 2.5” NPT female rigid inlet x 2.5” NH male outlet (hydrant gate valve) $724.00
HHGV-25NPTM-25NPSHFS Gate valve 2.5” NPSH female swivel rocker lug inlet x 2.5” NPT male outlet (hydrant gate valve) $712.00
HHGV-25NHFS-25NHFS 2.5” NH female swivel rocker lug inlet x 2.5” NH female swivel outlet $826.00
HHGV-25-25NH Gate valve 2.5” NH female swivel rocker lug inlet x 2.5” Storz outlet (hydrant gate valve) DOWNLOAD $760.00

Special Threads available on request, cost as follows: Allow 4-5 weeks for special threads.
• All Special Threads = $15.00 net, each
• 1” to 3.5” – NPT Threads = No Charge
• 4″ and up – NPT Threads = $15.00 net, each
