Flange Storz Adapters
** New Flange Coating Process **

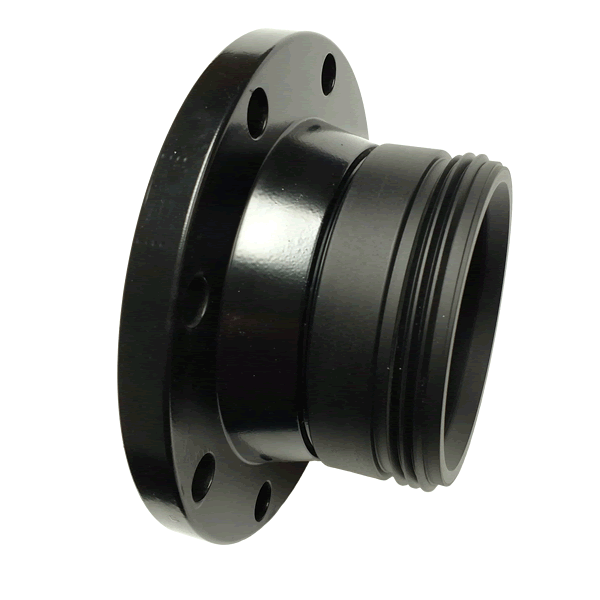

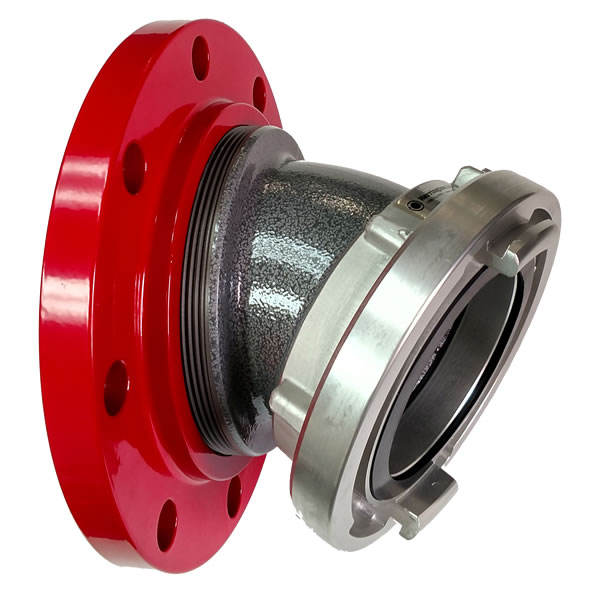

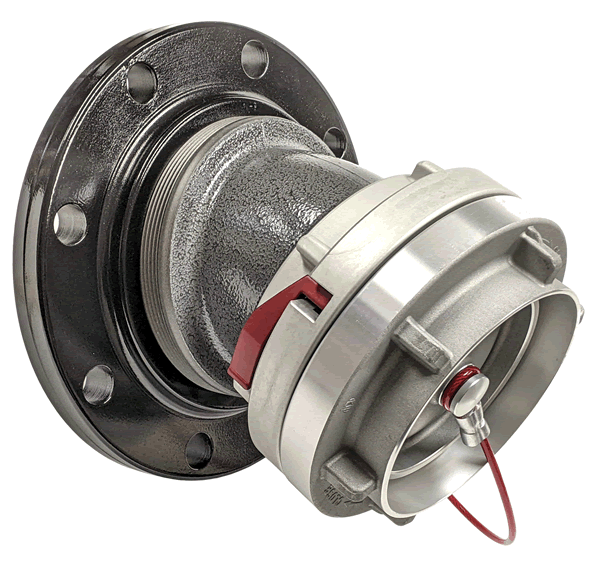

Harrington Storz heads are forged from Made in USA aluminum for maximum strength. Flange adapters are available in straight and 30 degree elbow Storz forgings. The Storz heads are also completely anodized to a military specification for durability and long life. We start with a Made in USA carbon steel 150#ANSI flange that is stripped and cleaned of any manufacturing oils or dirt providing a good base for primer adhesion. A Zinc rich primer coat is applied that seals the entire carbon steel flange. A powder coat finish is then applied to the flange – red or black The primer and top coat include the entire flange and is applied to the flange after threads have been cut. These adapters are available with Flat Face or Raised Face Flanges in either black or red colors are ideal for use in Fixed facilities, pump connections, or other permanent mounting for years of continued service.
Description
Not seeing the size or product that you need? Give us a call, custom sizes are
available.
| Part Number | Description | LIST | Spec Sheet |
| Threaded #150 Flanges Flat Face | |||
| HFL-FF-40-45NHM | 4” flat face 150# carbon steel flange x anodized aluminum 4.5” NH Male | $400.00 | |
| HFL-FF-60-45NHM | 6” flat face 150# carbon steel flange x anodized aluminum 4.5” NH Male | $605.00 | |
| HFL-FF-60-60NHM | 6” flat face 150# carbon steel flange x anodized aluminum 6” NH Male | $590.00 | |
| HFL-FF-40-45NHFS | 4” flat face 150# carbon steel flange x anodized aluminum 4.5” NH Female swivel rocker lug | $450.00 | |
| HFL-FF-60-45NHFS | 6” flat face 150# carbon steel flange x anodized aluminum 4.5” NH Female swivel rocker lug |
$610.00 | |
| HFL-FF-60-60NHFS | 6” flat face 150# carbon steel flange x anodized aluminum 6” NH Female swivel rocker lug | $500.00 | |
| Threaded #150 Flanges Raised Face | |||
| HFL-RF-40-45NHM | 4” raised face 150# carbon steel flange x anodized aluminum 4.5” NH Male | $400.00 | |
| HFL-RF-60-45NHM | 6” raised face 150# carbon steel flange x anodized aluminum 4.5” NH Male | $605.00 | |
| HFL-RF-60-60NHM | 6” raised face 150# carbon steel flange x anodized aluminum 6” NH Male | $590.00 | Download |
| HFL-RF-40-45NHFS | 4” raised face 150# carbon steel flange x anodized aluminum 4.5” NH Female swivel rocker lug | $450.00 | |
| HFL-RF-60-45NHFS | 6” raised face 150# carbon steel flange x anodized aluminum 4.5” NH Female swivel rocker lug | $610.00 | |
| HFL-RF-60-60NHFS | 6” raised face 150# carbon steel flange x anodized aluminum 6” NH Female swivel rocker lug | $500.00 | |
