HTBFV- Butterfly Valves – Threaded

  • Bubble tight shut off 4”, 5”, and 6” Butterfly valves

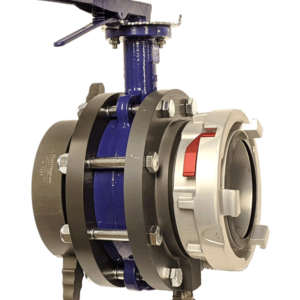

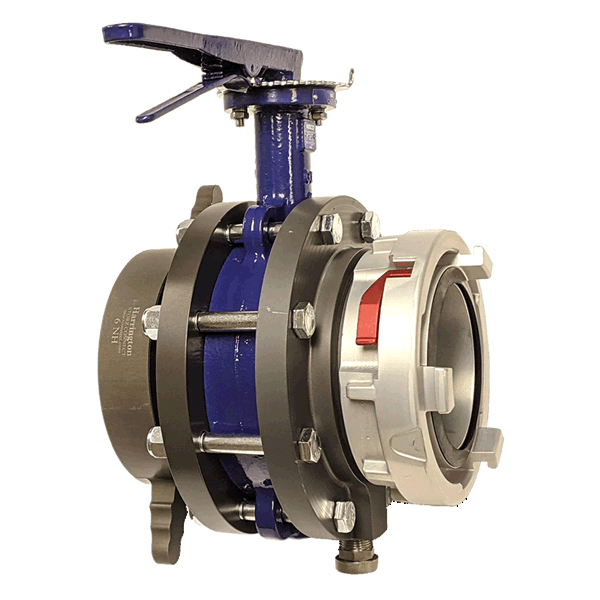

  • NH/NPSH thread or Storz connections
  • Lever operator or gear operator for slow open/close operation
  • EPDM rubber liner
  • Bi-Directional
  • Aluminum bronze disc
  • Cast iron body
  • Optional Hand Wheel crank with fold down knob in place of lever operator.Body is isolated from flow stream
  • Bronze shaft bushings
  • Stainless steel stem
  • Working pressure 200 PSI
  • Stainless steel screw drain

Description

Part Number Description LIST
HTBFV-40NHM-40NHLH Butterfly Valve 4″ NH male x 4″ NH female swivel long handle $2,382.00
HTBFVH-40NHM-40NHLH Butterfly Valve 4″ NH male x 4″ NH female swivel long handle with Handwheel $3,008.00
HTBFV-40NHM-40NPSHLH Butterfly Valve 4″ NH male x 4″ NPSH female swivel long handle $2,382.00
HTBFV-40NPSHM-40NPSHLH Butterfly Valve 4″ NPSH male x 4″ NPSH female swivel long handle $2,382.00
HTBFVH-40NPSHM-40NPSHLH Butterfly Valve 4″ NPSH male x 4″ NPSH female swivel long handle with Handwheel $3,008.00
HTBFV-40NHM-45NHLH Butterfly Valve 4″ NH male x 4.5″ NH female swivel long handle $2,365.00
HTBFV-40NHM-50NHLH Butterfly Valve 4″ NH male x 5″ NH female swivel long handle $2,359.00
HTBFV-40NHM-60NHLH Butterfly Valve 4″ NH male x 6″ NH female swivel long handle $2,403.00
HTBFV-45NHM-40NHLH Butterfly Valve 4.5″ NH male x 4″ NH female swivel long handle $2,382.00
HTBFV-45NHM-45NHLH Butterfly Valve 4.5″ NH male x 4.5″ NH female swivel long handle $2,365.00
HTBFV-45NHM-50NHLH Butterfly Valve 4.5″ NH male x 5″ NH female swivel long handle $2,359.00
HTBFV-45NHM-60NHLH Butterfly Valve 4.5″ NH male x 6″ NH female swivel long handle $2,403.00
HTBFV-50NHM-40NHLH Butterfly Valve 5″ NH male x 4″ NH female swivel long handle $2,382.00
HTBFV-50NHM-45NHLH Butterfly Valve 5″ NH male x 4.5″ NH female swivel long handle $2,265.00
HTBFV-50NHM-50NHLH Butterfly Valve 5″ NH male x 5″ NH female swivel long handle $2,359.00
HTBFV-50NHM-50NPSHLH Butterfly Valve 5″ NH male x 5″ NPSH female swivel long handle $2,359.00
HTBFV-50NHM-60NHLH Butterfly Valve 5″ NH male x 6″ NH female swivel long handle $2,403.00
HTBFV-60NHM-60NHLH Butterfly Valve 6″ NH male x 6″ NH female swivel long handle $2,403.00

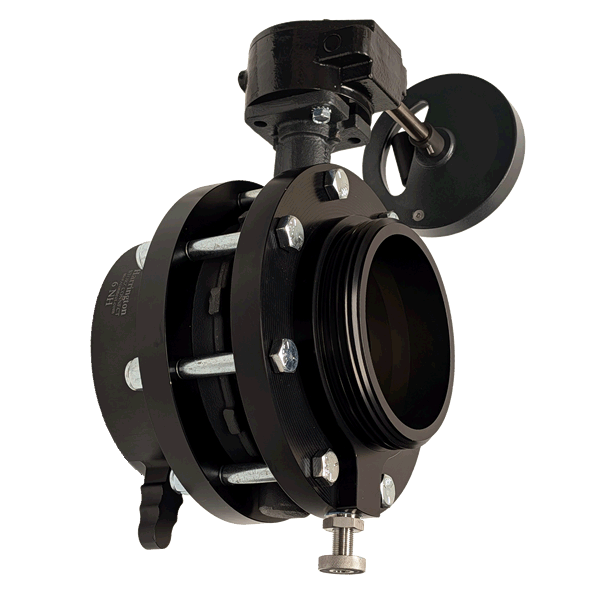

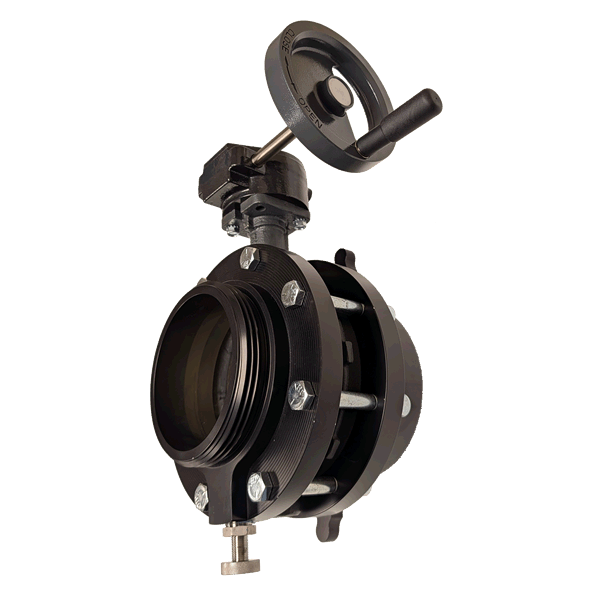

HTBFVH-60NHM-60-NHLH Butterfly Valve 6” NH male x 6” NH female swivel long handle with handwheel $3,029.00
HABS 0.75″ screw down bleeder valve NPT $114.00

Special Threads available on request, cost as follows: Allow 4-5 weeks for special threads.
• All Special Threads = $15.00 net, each
• 1” to 3.5” – NPT Threads = No Charge
• 4″ and up – NPT Threads = $15.00 net, each
