- Bubble tight shut off 4”, 5”, and 6” Butterfly valves
- NH/NPT thread by Storz connections
- Lever operator or gear operator for slow open/close operation
- EPDM rubber liner
- Bi-Directional
- Aluminum bronze disc
- Cast iron body
- Optional Hand Wheel crank with fold down knob in place of lever operator. Body is isolated from flow stream
- Bronze shaft bushings
- Stainless steel stem
- Working pressure 200 PSI
- Stainless steel screw drain
Description
| Part Number | Description | LIST | |

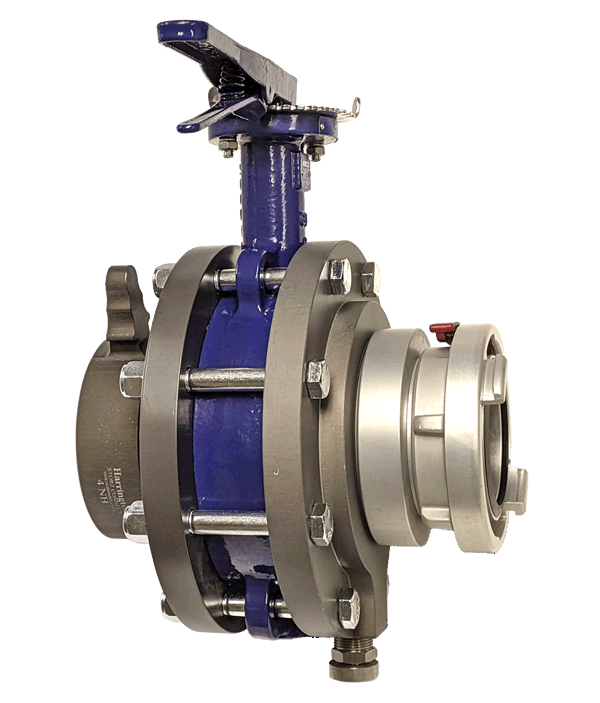

| HSBFV-40-40NHLH | Butterfly Valve 4″ Storz x 4″ NH female swivel long handle | $2,656.00 | |
| HSBFV-40-40NPSHLH | Butterfly Valve 4″ Storz x 4″ NPSH female swivel long handle | $2,656.00 | |
| HSBFV-40-45NHLH | Butterfly Valve 4″ Storz x 4.5″ NH female swivel long handle | $2,646.00 | |
| HSBFV-40-50NHLH | Butterfly Valve 4″ Storz x 5″ NH female swivel long handle | $2,641.00 | |
| HSBFV-40-60NHLH | Butterfly Valve 4″ Storz x 6″ NH female swivel long handle | $2,685.00 | |
| HSBFV-50-40NHLH | Butterfly Valve 5″ Storz x 4″ NH female swivel long handle | $2607.00 | |
| HSBFV-50-45NHLH | Butterfly Valve 5″ Storz x 4.5″ NH female swivel long handle | $2,590.00 | |
| HSBFVH-50-45NHLH | Butterfly Valve 5″ Storz x 4.5″ NH female swivel long handle with Handwheel | $3,216.00 | |
| HSBFV-50-50NHLH | Butterfly Valve 5″ Storz x 5″ NH female swivel long handle | $2,584.00 | |
| HSBFVH-50-50NHLH | Butterfly Valve 5″ Storz x 5″ NH female swivel long handle with Handwheel | $3,210.00 | |
| HSBFV-50-60NHLH | Butterfly Valve 5″ Storz x 6″ NH female swivel long handle | $2,228.00 | |

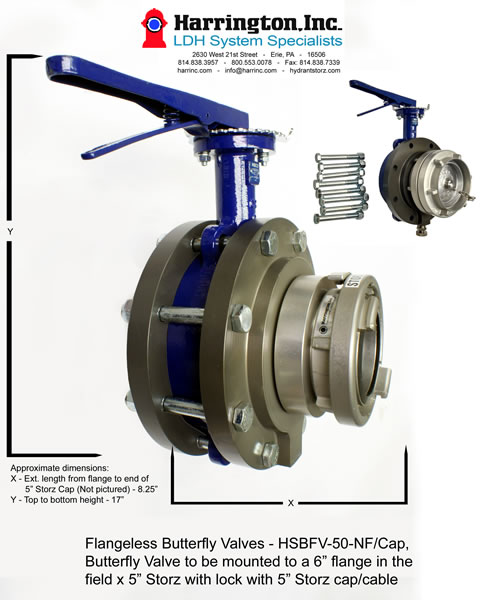

| HSBFV-50-NF/Cap | To be mounted to a 6” flange in the field x 5” Storz with Storz-Lok with 5” Storz cap/cable | $1,884.00 | |
| HSBFVH-50-60NHLH | Butterfly Valve 5” Storz x 6”NH Female swivel long handle | $3,254.00 | |
| HSBFV-60-40NHLH | Butterfly Valve 6″ Storz x 4″ NH female swivel long handle | $2,603.00 | |
| HSBFV-60-45NHLH | Butterfly Valve 6″ Storz x 4.5″ NH female swivel long handle | $2,586.00 | |
| HSBFV-60-50NHLH | Butterfly Valve 6″ Storz x 5″ NH female swivel long handle | $2,581.00 | |

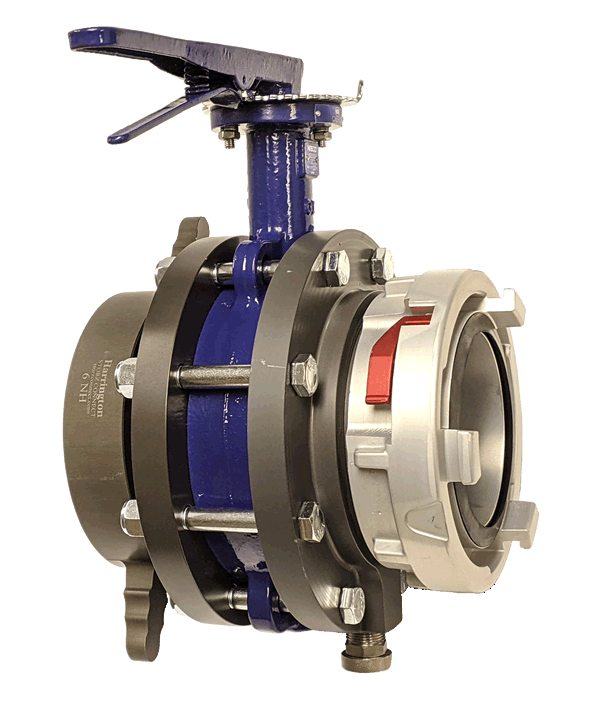

| HSBFV-60-60NHLH | Butterfly Valve 6″ Storz x 6″ NH female swivel long handle | $2,624.00 | |
| HABS | 0.75″ screw down bleeder valve NPT | $114.00 |
Special Threads available on request, cost as follows: Allow 4-5 weeks for special threads.
• All Special Threads = $15.00 net, each
• 1” to 3.5” – NPT Threads = No Charge
• 4″ and up – NPT Threads = $15.00 net, each
