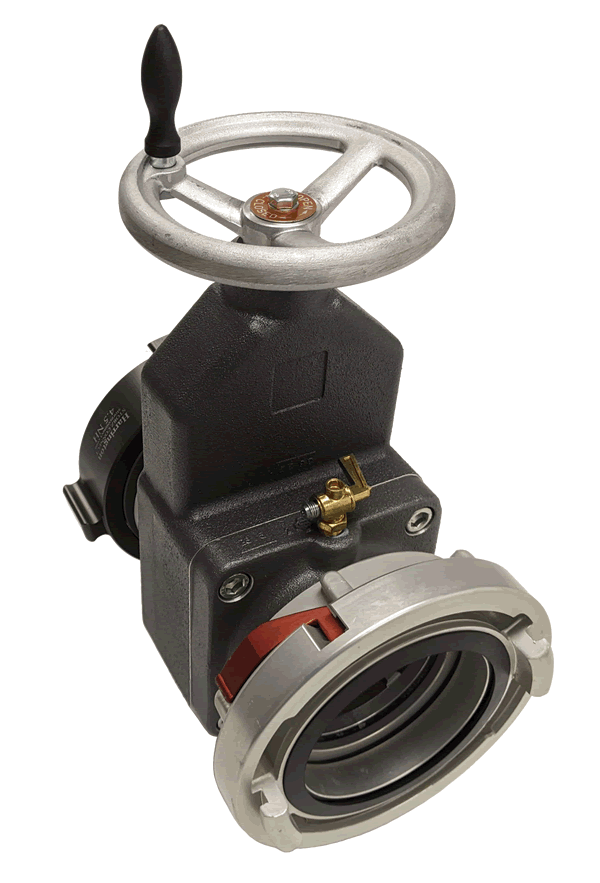

This LDH hydrant gate valve provides low friction loss due to a high flow design. It is excellent for hydrant discharge control, due to providing a slow open/close mechanism.
The light weight gate valve has an air bleeder valve, a non-rising stem, an anodized gate, and a stainless steel spindle.
Dimensions: H: 14” L: 10” W: 6”
Weight: 21 lbs
Friction loss at 1000 GPM: 0.8 PSI
Note: the H800 Series is available with a flange on the intake. Please contact us directly for pricing information.
PRINT a Product Manual
Add a screen:
HSAS-40 Stainless Steel Screen for 4” Storz $62.00
HSAS-50 Stainless Steel Screen for 5” Storz $68.00
HSAS-60 Stainless Steel Screen for 6” Storz $72.00
Add a Storz Cap to your order. See pricing below.
Description
Note: These valves are also available with Flange connections, call or e-mail specific information: Size of flange and if need flat face or raised face flange
| Part Number | Description | Spec Sheet | LIST |
| H800-40-40NH | 4” Gate valve straight 4” NH female swivel rocker lug inlet x 4” Storz-Lok outlet | $1,641.00 | |
| H800-40-40NHLH | 4” Gate valve straight 4” NH long handle female swivel rocker lug inlet x 4” Storz-Lok outlet | $1,641.00 | |
| H800-40-40NPSH | 4” Gate valve straight 4” NPSH female swivel rocker lug inlet x 4” Storz-Lok outlet | $1,641.00 | |
| H800-40-40NPSHLH | 4” Gate valve straight 4” NPSH long handle female swivel rocker lug inlet x 4” Storz-Lok outlet | $1,641.00 | |
| H800-40-40ST | 4” Gate valve straight 4” Storz-Lok part time swivel rocker lug inlet x 4” Storz-Lok outlet | $1,830.00 | |
| H800-40NHFS-40NHFS | 4” Gate valve straight 4” NH female swivel rocker lug inlet x 4” NH female swivel outlet | $1,670.00 | |
| H800-40NPSHFS-40NPSHFS | 4” Gate valve straight 4” NPSH female swivel rocker lug inlet x 4” NPSH female swivel outlet | $1,670.00 | |
| H800-40NHFS-40NPTF | 4” Gate valve straight 4” NPT female rigid inlet x 4” NPSH female swivel outlet | $1,563.00 | |
| H800-40NHM-40NH | 4” Gate valve straight 4” NH female swivel inlet x 4” NH male outlet | $1,568.00 | |
| H800-40NHM-40NHLH | 4” Gate valve straight 4” NH female long handle swivel inlet x 4” NH male outlet | $1,577.00 | |
| H800-40NHM-40NPSH | 4” Gate valve straight 4” NPSH female swivel inlet x 4” NH male outlet | $1,568.00 | |
| H800-40NPTM-40NPSHFS | 4” Gate valve straight 4” NPSH female swivel inlet x 4” NH male outlet | $1,592.00 | |
| H800-40-45NH | Gate valve 4″ straight 4.5″ NH female swivel rocker lug Hydrant Connection x 4″ Storz-Lok outlet | $1,626.00 | |
| H800-40-45NHLH | 4” Gate valve straight 4.5” NH female long handle swivel inlet x 4” Storz-Lok outlet | $1,636.00 | |
| H800-40NHM-45NH | 4” Gate valve straight 4.5” NH female swivel inlet x 4” NH male outlet | $1,533.00 | |
| H800-40NHM-45NHLH | 4” Gate valve straight 4.5” NH female long handle swivel inlet x 4” NH male outlet | $1,563.00 | |
| H800-40-50NH | Gate valve 4″ straight 5″ NH female swivel rocker lug Hydrant Connection x 4″ Storz-Lok outlet | $1,673.00 | |
| H800-40-60NH | Gate valve 4″ straight 6″ NH female swivel rocker lug Hydrant Connection x 4″ Storz-Lok outlet | $1,747.00 | |
| H800-40-60NHLH | 4” Gate valve straight 6” NH female long handle swivel inlet x 4” Storz-Lok outlet | $1,752.00 | |
| H800-40-60NPSH | 4” Gate valve straight 6” NPSH female swivel rocker lug inlet x 4” Storz-Lok outlet | $1,747.00 | |
| H800-45NHM-45NH | Gate valve 4″ straight 4.5″ NH female swivel rocker lug Hydrant Connection x 4.5″ NH male outlet | $1,575.00 | |
| H800-45NHM-45NHLH | 4” Gate valve straight 4.5” NH female long handle swivel inlet x 4.5” NH male outlet | $1,585.00 | |
| H800-50-40NH | Gate valve 4″ straight 4″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet | $1,800.00 | |
| H800-50-40NHLH | 4” Gate valve straight 4” NH female long handle swivel inlet x 5” Storz-Lok outlet | $1,806.00 | |
| H800-50-45NH | Gate valve 4″ straight 4.5″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet | $1,785.00 | |
| H800-50-45NHLH | 4” Gate valve straight 4.5” NH female long handle swivel inlet x 5” Storz-Lok outlet | $1,795.00 | |
| H800-50-45NPSH | 4” Gate valve straight 4.5” NPSH female swivel inlet x 5” Storz-Lok outlet | $1,785.00 | |
| H800-50-50NH | Gate valve 4″ straight 5″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet | $1,832.00 | |
| H800-50-50ST | Gate valve 4″ straight 5″ Storz-Lok Hydrant Connection x 5″ Storz-Lok outlet | $1,916.00 | |
| H800-50NHM-50NH | Gate valve 4″ straight 5″ NH female swivel rocker lug Hydrant Connection x 5″ NH male outlet | $1,648.00 | |
| H800-50-60NH | Gate valve 4″ straight 6″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet | DOWNLOAD | $1,906.00 |
| H800-50-60NHLH | 4” Gate valve straight 6” NH female long handle swivel inlet x 5” Storz-Lok outlet | $1,911.00 | |
| H800-50-60NPSH | 4” Gate valve straight 6” NPSH female swivel rocker lug inlet x 5” Storz-Lok outlet | $1,906.00 | |
| H800-50-60NPSHLH | 4” Gate valve straight 6” NPSH female long handle swivel inlet x 5” Storz-Lok outlet | $1,911.00 | |
| H800-60-60NH | 4” Gate valve straight 6” NH female swivel rocker lug inlet x 6” Storz-Lok outlet | $1,898.00 | |
| H800-60-60NHLH | 4” Gate valve straight 6” NH female long handle swivel inlet x 6” Storz-Lok outlet | $1,903.00 | |
| H800-60NHM-60NH | Gate valve 4″ straight 6″ NH female swivel rocker lug Hydrant Connection x 6″ NH male outlet | $1,750.00 | |
| H800-60NHM-60NHLH | 4” Gate valve straight 6” NH female long handle swivel inlet x 6” NH male outlet | $1,755.00 | |
| H800-60NHM-60NPSH | 4” Gate valve straight 6” NPSH female swivel inlet x 6” NH male outlet | $1,750.00 | |
| H800-60NHM-60NPSHLH | 4” Gate valve straight 6” NPSH female long handle swivel inlet x 6” NH male outlet | $1,755.00 | |
| Available Storz Caps | |||
| HBC-40 | 4″ Blind Cap | $146.00 | |
| HBC-50 | 5″ Blind Cap | $180.00 | |
